Item Code: 12286

Item Code: 11673

Item Code: 11667

>8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.

>8-channel SMD Plus for analog channels or 10-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
>8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
>Supports HDCVI, AHD, TVI, CVBS and IP video input.
>Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
>Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
>Smart H.265+ and H.265 dual-stream video compression.

Item Code: 11623
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Up to 4 Channel video metadata
> Up to 12 Channel perimeter protection,SMD Plus
> Up to 4 Channel video stream face recognition
> Up to 16 face pictures/sec processing

> Up to 20 face databases with 200,000 face images in total

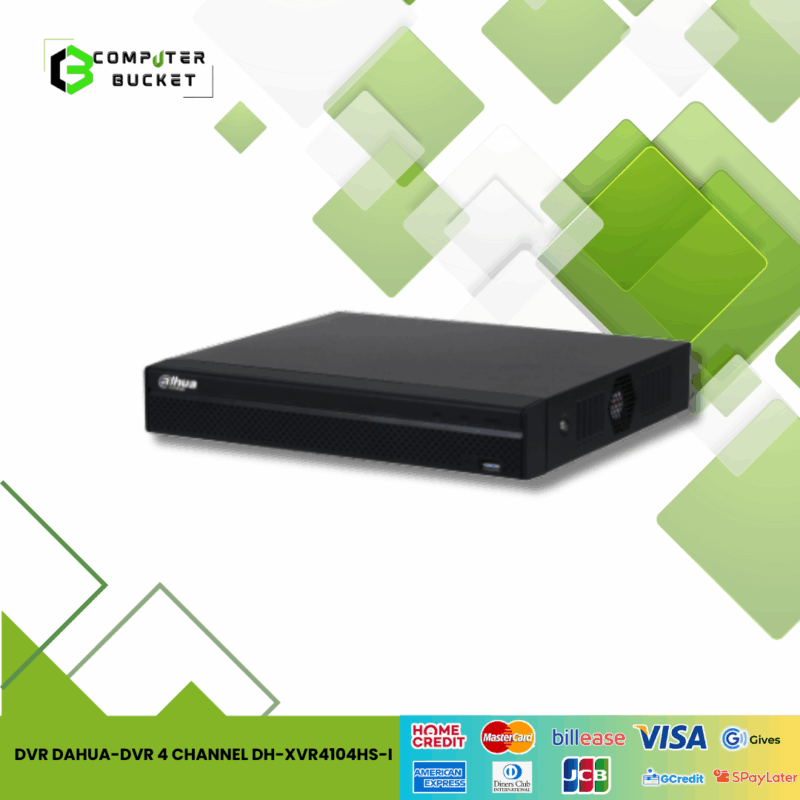

Item Code: 11587
Dahua DH-XVR4104HS-I is a 4-channel XVR (Digital Video Recorder) from the WizSense 4 series. It features 1 SATA HDD bay, supporting up to 6TB of storage. With full channel AI-coding, it offers enhanced video encoding capabilities. Additionally, it supports up to 4 analog channel SMD plus and can handle a maximum of 5 IP channels, each up to 2MP resolution.

Item Code: 11139

> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.

> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.

> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.

> Supports IP cameras with a resolution up to 12 MP.

> AI by Recorder supports 4-channel SMD Plus.

> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.

> Supports EPTZ, and one-click arming and disarming.

Item Code: 10159

Dahua-NVR1108HS-8P-S3/H System Overview

Dahua-NVR1108HS-8P-S3/H 8 Channel Compact 1U 8PoE Lite H.265 Network Video Recorder. This network video recorder is a highly cost-effective product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control.

Dahua-NVR1108HS-8P-S3/H Specification

System
Main Processor: Industrial-grade embedded processor
Operating System: Embedded Linux
Operation Interface: Web/operating in local GUI

Video
Access Channel: 8 channels
Network Bandwidth: 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding.
Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability:
1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or
2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or
4–ch@1080P(30FPS)8–ch@720P(30FPS)
Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display: 1/4/8/9
Third-Party Camera Access: Onvif, RTSP

Compression
Video: Smart H.265+/Smart H.264+/H.265/H.264
Audio: PCM/G711A/G711U/G726/AAC

Network
Network Protocol: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
Mobile Phone Access: IDMSS (iOS), GDMSS (Android)
Access Standard: ONVIF (profile T/profile S/profile G), CGI, SDK
Browser: Chrome, IE9 or above, Firefox

Alarm
General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage: Video recording, snapshot, log, preset, tour

External Port
HDD:
1 SATA 2.0 port, up to 8 TB for a single HDD. The
maximum HDD capacity varies with the environment
temperature:
USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI: 1
VGA: 1
RCA Input: 1
RCA Output: 1
Alarm: None
Network: 1 RJ–45 port (10/100 Mbps), 8 RJ–45 ports with PoE
power supply: (10/100 Mbps)

General Parameter
Power Supply: DC48V/53V, 2A/1.8A
Power Consumption:
The total output of NVR is ≤ 10W (without HDD)
The total output power of PoE is 72W, and the maximum output
The power of a single port is 25.5W
Net Weight: 0.84 kg (1.85 lb)
Gross weight: 1.98 kg (4.37 lb)
Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions: 87 mm×331 mm×312 mm (W × L × H)
Operating Temperature: -10°C to 45°C (+34°F to +113°F)
Storage Temperature: 0°C to 40°C (+32°F to +104°F)
Operating Humidity: 10%~93%
Storage Humidity: 30%~85%
Operating Altitude: 3000 m (9843 ft)
Installation: Desktop mounting
Certification: CE/FCC

Item Code: 10157

• 4-channel SMD Plus enables accurate alarms for humans and vehicles in analog channels.
• 8-channel AI Coding reduces storage and bandwidth usage while preserving target details in videos.
• Supports HDCVI, AHD, TVI, CVBS, and IP video input.
• Allows up to 10-channel IP camera input, with each channel supporting up to 6 MP. Incoming bandwidth reaches 40 Mbps.
• Utilizes Smart H.265+ and H.265 dual-stream video compression.
